counter current square cooling tower supplier price

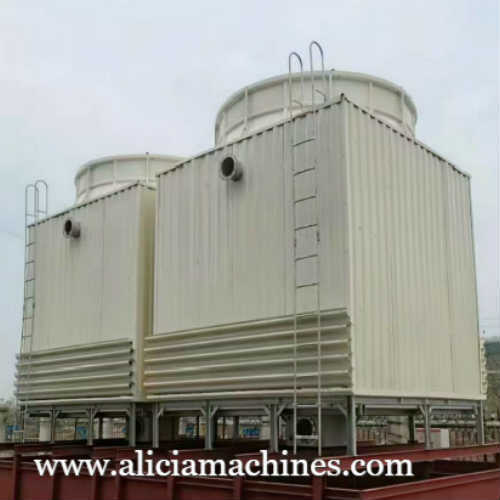

A counter current square cooling tower is an industrial cooling device with a square structure. It uses the counter flow principle (hot water flows downward, cold air flows upward) to achieve efficient heat exchange, mainly used to cool high-temperature industrial water.
Core Working Principle of counter current square cooling tower
The counter flow design is its core feature, and the heat exchange process follows three key steps:
Water Distribution: High-temperature industrial water is evenly sprayed onto the packing layer from the top through the water distribution system.
Counter Flow Heat Exchange: As the water flows downward along the packing surface, it fully contacts the cold air that is drawn upward by the fan at the bottom. The two streams move in opposite directions, maximizing the temperature difference between water and air and enhancing heat exchange efficiency.
Water Collection: The cooled water falls into the water collection tank at the bottom and is recycled back to the industrial production system; the hot and humid air is discharged to the outside through the fan at the top.

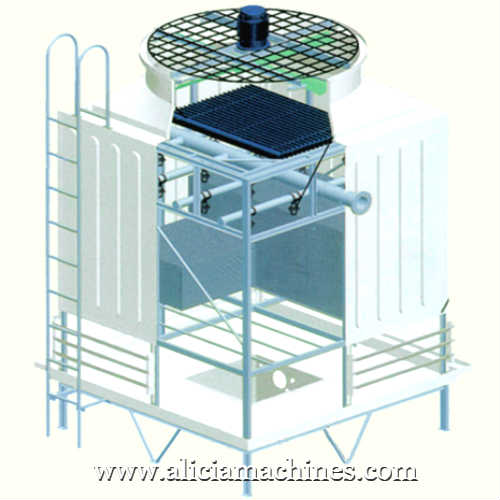

Product introduction for counter flow square towerIn a counterflow cooling tower, process water is pumped into a sealed header box. The header box then distributes the water into branch arms and nozzles, creating a pressurized water distribution system.

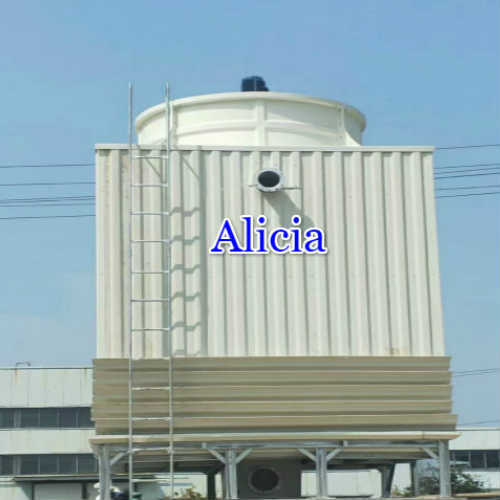

Square counterflow cooling towerA countercurrent cooling tower is a cooling tower in which water flows countercurrent to air. Water flows through the tower from top to bottom, and air flows from bottom to top. According to the cooling requirements, standard form and high-temperature form are optional. The counterflow cooling tower has good thermal performance and is divided into three cooling sections:A. The water temperature in the space between the eliminator and the top of the filler is relatively high, and the heat can still be transferred to the air.B. Filling, water, and air heat transfer section.C. From the filling to the water spray section of the collection basin, the water cooling here is called tow water.
Key Advantages of counter current square cooling tower
High Cooling Efficiency: The counter flow of water and air creates a larger heat exchange area and longer contact time. Compared with cross flow cooling towers, its cooling effect is usually 10%-20% higher.
Compact Structure: The square design saves floor space. It is more suitable for factories or workshops with limited installation areas than round cooling towers of the same cooling capacity.
Stable Operation: The water distribution is uniform, and the packing layer is not easily blocked. It can maintain stable cooling performance even under variable load conditions (such as changes in water temperature or flow).
Low Energy Consumption: The fan only needs to overcome the resistance of the upward air flow. Under the same cooling demand, its fan power consumption is lower than that of some cross flow models.
Typical Application Scenarios of counter current square cooling tower
Power Industry: Cools circulating water in thermal power plants, nuclear power plants, and other facilities, ensuring the normal operation of generators and condensers.
Metallurgical Industry: Reduces the temperature of cooling water for high-temperature equipment such as blast furnaces, converters, and rolling mills.
Chemical & Petrochemical Industry: Lowers the temperature of process water in chemical reactors, distillation towers, and other equipment to meet production process requirements.
Manufacturing Industry: Cools cooling water for injection molding machines, die-casting machines, and other mechanical equipment in plastic, automobile, and electronic component production.
